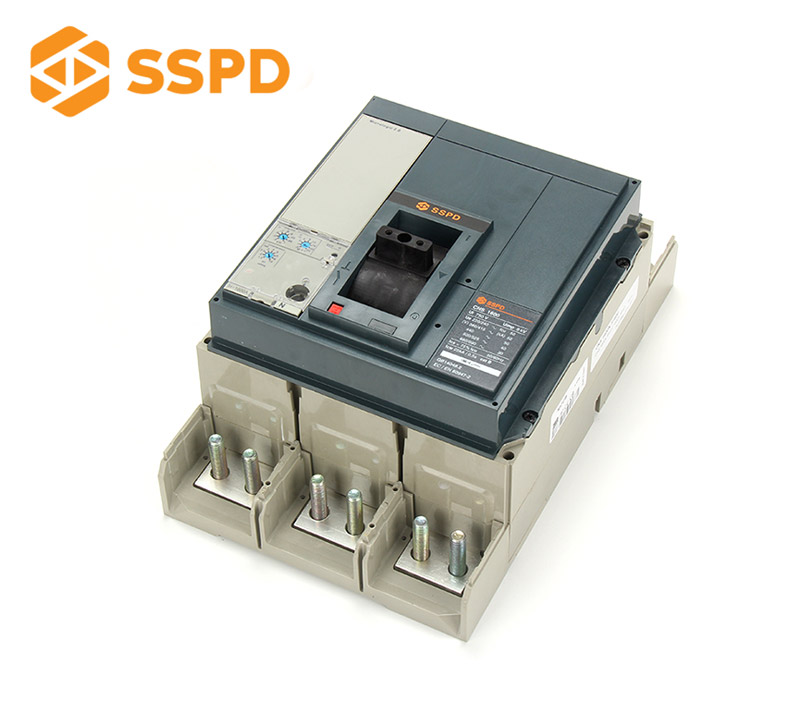

CNS Moulded Case Circuit Breaker

Our CNS series of MCCB has already provided ODM/OEM and other related services to many well-known domestic and foreign manufacturers.
With professional heart, do the professional thing” reflects our commitment to the pursuit of excellent quality.
In order to ensure each MCCB can meet the high standard requirement of performance and safety, every production workshop is equipped with a long-delay, short-delay, instantaneous efficacy desk, with a standing voltage calibration desk, mechanical life test rack, intelligent tester, and other testing equipment. We test rigorously for the products’ tripping precision, sensitivity, and reliability of mechanical operation, and the material of key accessories, so as to ensure every product can meet the customer’s quality requirement.

In order to control costs and quality effectively, all accessories of the circuit breaker are designed, molded, and put into continuous production on our own.

Our commitment to all customers is to offer the products with the best cost-performance ratio.

Get Quote Now

    Quick Help: Contact one of our experts and we'll get back to you in 24 hours!

    Get Free Catalog

      Quick Help: Attachments will be downloaded automatically after form submission!

      Functions and Characteristics

      Item No.CNS  800-1600
      Number of poles3P, 4P
      ControlManualwith toggle
      with direct or extended rotary handle
      ConnectionsFixedfront connections
      Plug-infront connections/rear connections
      Electrical characteristics as per IEC60947 and EN60947-2
      Rated current(A) InIn800, 1000, 1250, 1600
      Rated insulation voltage(V)Ui800
      Rated impulse withstand voltage(kV)Uimp8
      Rated operational voltage(V)UeAC 50/60Hz,690
      Breaking capacity levels                                      N            H
      Utilization categoryAC220/240V                        85          85
      380/415V                        50          70
      440V                               50          65
      500/525V                        40          50
      660/690V                        30          42
      Operation performanceMechanical10000
      Electrical 440V5000
      Protection                                                                                          Chart C-1
      Overload protectionlong-time delayIr (In x……)
      Short-circuit protectionshort-time delayIsd (Ir x……)
      InstantaneousIi (In x……)
      Indication and control auxiliaries
      Auxiliary switch
      MX Shunt coil
      MN under-voltage coil

      Dimension

      Tripping Curves

      Packing Data

      ModelQty/CTN(pcs)GW(kg)NW(kg)Carton Size(cm)
      CNS-800 3P114.11245.5*35.5*31.5
      CNS-800 4P118.215.444.5*36*42.5
      CNS-1600 3P114.412.345.5*35.5*31.5
      CNS-1600 4P118.81644.5*36*42.5
