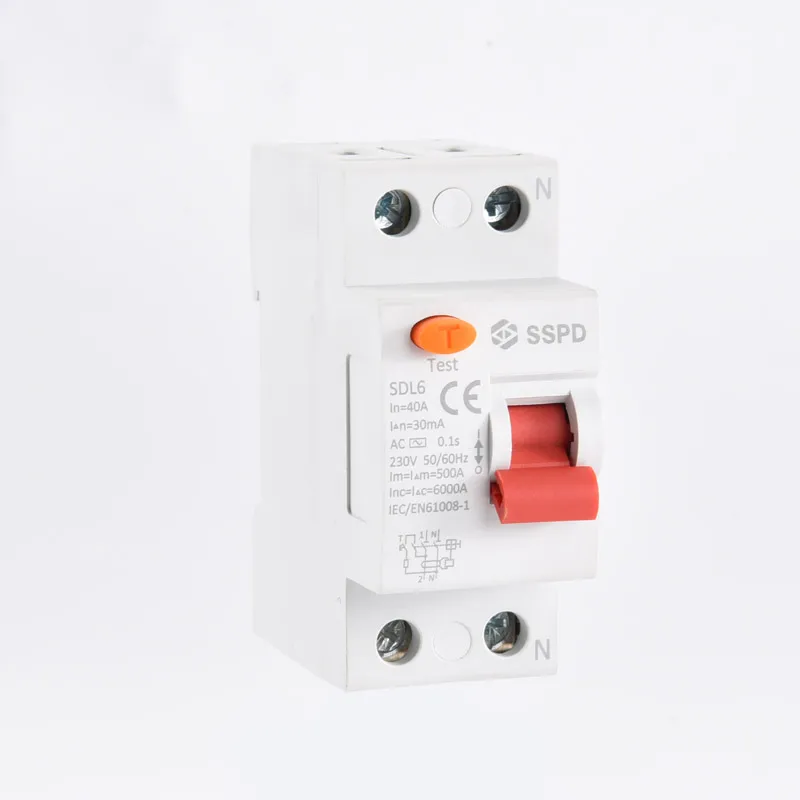

SDL6 type leakage circuit breaker is mainly used for AC 50/60Hz, rated voltage 230V/400V, rated current 16A ~ 63A in the range of overload protection, short circuit protection, leakage protection, and undervoltage protection. It can also be used for infrequent on-off switch operations under normal circumstances.

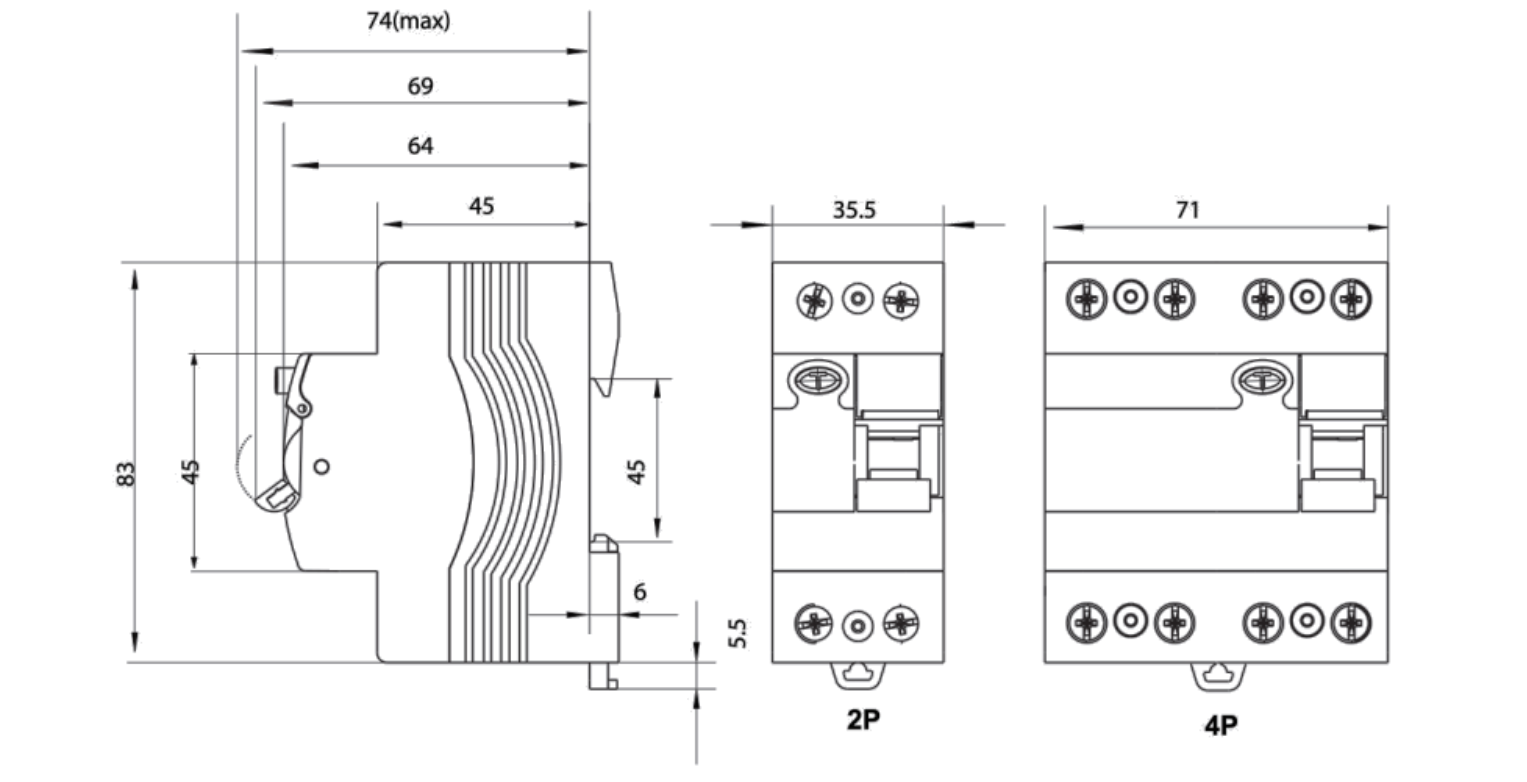

| Item No. | SDL6 Series | |
| Electrical characteristics as per IEC/EN 61008-1 | ||
| Rated current(A) | In | 16、25、40、63A |
| Number of poles | 2P 4P | |
| Rated voltage(V) | Ue | 2P: 230V 4P:400V |
| Rated insulation voltage(V) | Ui | 500V |
| Rated frequency | 50/60Hz | |
| Rated sensitivity I∆n | 0.03A 0.1A 0.3A | |
| Rated residual making and breaking capacity | Im | 500(In=25-40A) 630(In=63A) |
| Short-circuit current Inc = I∆c | 6000A | |
| Break time under I∆n | ≤0.1s | |
| Rated impulse withstand voltage (1.2/50) | Uimp | 6000V |
| Dielectric test voltage at and ind.Freq.for 1min | 2.5kV | |
| Electrical life(time) | 4000 | |
| Mechanical Life(time) | 4000 | |
| Pollution degree | 2 | |
| Installation | ||
| Fault current indicator | NO | |
| Protection degree | IP20 | |
| Ambient temperature (with daily average ≤35℃） | -5~+40℃ | |
| Storage temperature | -25~+70℃ | |
| Terminal connection type | Cable/U-type busbar/Pin-type busbar | |
| Terminal size top/bottom for cable | 25mm² 18-3 | |
| Terminal size top/bottom for busbar | 25mm² 18-3 | |
| Tightening torque | 3.0N+m 22 | |
| Mounting | On DIN rail FN 60715 (35mm) by means of fast clip device | |
| Connection | Top and bottom | |
| Model | Qty/CTN(pcs) | GW(kg) | NW(kg) | Carton Size(cm) |
| SDL6 2P | 100 | 24 | 22 | 50*42*19 |
| SDL6 4P | 50 | 24 | 22 | 50*42*19 |
