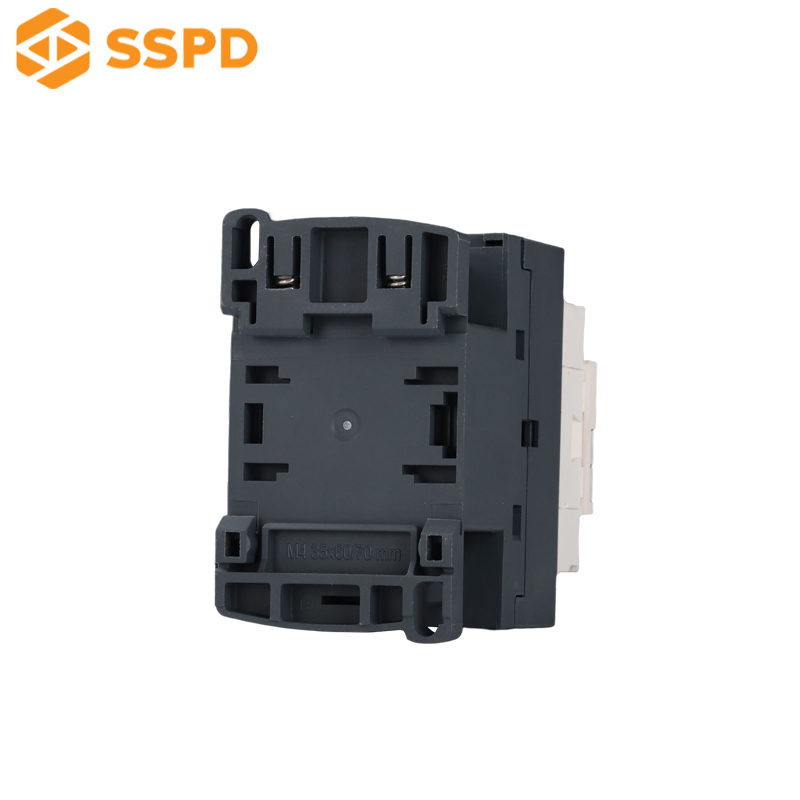

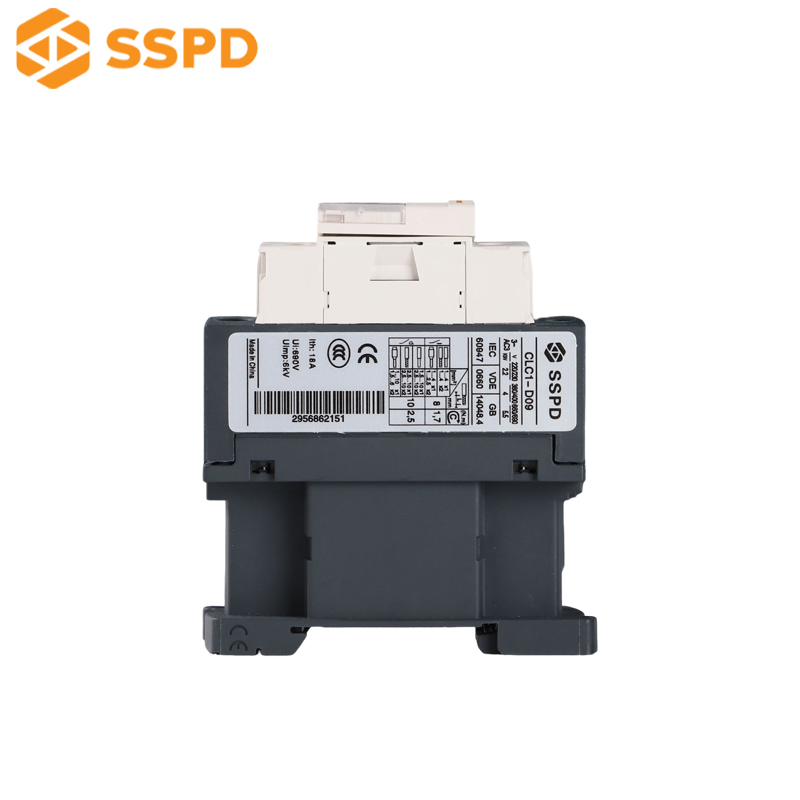

SSPD AC contactor CLC1D series are available from 9A-95A. SSPD CLC1D series has an exquisite appearance and high quality. The CLC1 series Ac Contractors rated insulation voltage up to 1000V in category AC-3 (0s 60 c), and the rated operation current is 9~95A in AC-3 440V. it is mainly used for making and breaking electric circuits at a long distance, and for frequent starting & stopping, and controlling AC Motors. SSPD CLC1 series AC Contactor complies with lEC60947-4.
| CLC1 | D09 | D12 | D18 | D25 | D32 | D38 | D40A | 50A | 65A | D80 | D95 | |
| Rated operational current in AC-3 440V up to | 9A | 12A | 18A | 25A | 32A | 38A | 40A | 50A | 65A | 80A | 95A | |
| Control citcuit voltage | AC 24V,110V,220V,380V,415V | |||||||||||
| Standard power ratings of 3-phase motors 50-60 Hz in category AC-3 (θ≤ 60 °C) | 220V/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 9 | 11 | 15 | 18.5 | 22 | 25 |
| 380V/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 18.5 | 22 | 25 | 37 | 45 | 45 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 45 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
| 660V/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| 1000V | – | – | – | – | – | – | – | – | – | 45 | 45 | |
| Model | Qty/CTN(pcs) | GW(kg) | NW(kg) | Carton Size(cm) |
| CLC1-D09 | 50 | 19 | 17 | 40.5*25.5*19 |
| CLC1-D12 | 50 | 19 | 17 | 40.5*25.5*19 |
| CLC1-D18 | 50 | 19 | 17 | 40.5*25.5*19 |
| CLC1-D25 | 50 | 20.5 | 18.5 | 46*27*21 |
| CLC1-D32 | 50 | 20.5 | 18.5 | 46*27*21 |
| CLC1-D38 | 50 | 20.5 | 18.5 | 46*27*21 |
| CLC1-D40A | 20 | 19.5 | 17.5 | 48.5*28*28 |
| CLC1-50A | 20 | 19.5 | 17.5 | 48.5*28*28 |
| CLC1-65A | 20 | 19.5 | 17.5 | 48.5*28*28 |
| CLC1-D80 | 20 | 32 | 30 | 48.5*28*28 |
| CLC1-D95 | 20 | 32 | 30 | 48.5*28*28 |
Manufacture products based on customer’s complete specifications.
Customers provide comprehensive specifications documents covering all product details, specifications include complete technical drawings, bill of materials, material/component requirements, and all dimensions, our Engineering and manufacturing team reviews specifications to ensure producibility, we can also provide some new ideas to help you make your product better!
A: We are professional manufacturer in industrial electrical equipment since 1992. Welcome to have online/offline factory tour for further communication.
A: Sure, please send us an inquiry and tell us your demand, we have a professional team to support you in model selection til the order is placed.
A: Moulded Case Circuit Breaker, Air Circuit Breaker, Earth Leakage Circuit Breaker, Miniature Circuit Breaker, Contactor, Motor Protection Circuit Breaker, etc.
A: We strict in high quality. Products has low temperature rise, long life time and good corrosion resistance. Our materials are Mitsubishi PC, DuPont PA66, DMC-A/DMC-2, metal coating-corrosion resistance 72 hours, T2 copper bar, T2 copper pillar, T2 copper plate. All Products pass the test of CQC,CE,CB and TUV.
A: Yes, 24 months warranty, and our products are 100% inspected. If any problems, let us know immediately, and we will give a satisfactory solution.
A: Yes, 100% inspection. Products passed all tests: micro resistance test, withstand voltage test, temperature rise test, short time delay characteristic test, long time delay characteristic test and instantaneous trip test for each phase.
A: Yes sure, we provide OEM/ODM/OBM/OPM service, consult us for details like MOQ and design.
A: Usually it takes about 25 days for production. If you have urgent requirements, please send us a list to check the stock. We have sufficient stock for materials.
A: We have flexible payment terms, and accept TT, 30% deposit with 70% balance before shipment.
A: Welcome! Please let me know your Country/Area first, we will have a check and then process it. Don’t hesitate to contact us for further cooperation.
A: Yes, for large quantities, we always support with better prices. Also, there are some seasonal promotions. Please contact us for a special discount.
A: For transportation issues, we will assist in troubleshooting and provide accessories and guidance. If the product cannot be repaired, we will send you replaced one in the next order. For installation issues, we will provide installation instructions or video guidance.
A: Welcome! We are in Liushi Town, Wenzhou City, Zhejiang, China. Let us know when you are planning to visit.
