📌 Moulded Case Circuit Breaker vs Insulated Case Circuit Breakers: Understanding the Differences
In low-voltage power distribution, choosing the right circuit breaker type is key. Here’s a quick comparison:

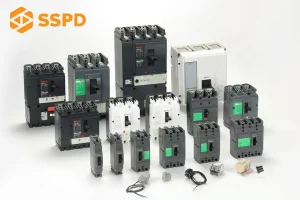

✅ Molded Case Circuit Breaker (MCCB)
• Constructed as a complete unit in an insulating enclosure — typically rated up to about 2 500 A and used in systems up to 600 V AC/500 V DC.
• Has a simple handle operation: one-step ON/OFF/trip resetting.
• Replaces the entire unit when internal mechanism is damaged (fewer serviceable parts).
• Often used for branch-circuit and feeder protection in commercial and light industrial setups.
✅ Insulated Case Circuit Breaker (ICCB)
• Essentially a molded-case breaker with added features: stored-energy spring mechanism (two-step closing), higher interrupting capacity, draw-out or fixed versions.
• Usually framed for larger currents and more demanding installations — more akin to power circuit breakers but in a molded case style.
• Better suited for main distribution, critical loads, where maintenance or draw-out features and higher short-circuit ratings are required.
🔍 Key Differences at a Glance
| Feature | MCCB | ICCB |
|---|---|---|
| Mechanism | One-step manual handle | Two-step stored energy/closing |
| Application scale | Feeder/branch circuits | Main distribution / higher duty |
| Serviceability | Less modular, replace entire unit | More serviceable, draw-out option |
| Interrupting capacity | Moderate | Higher |
| Use case mindset | Standard protection | Enhanced performance & duty |
🔧 What to Pick for Your Application?
For standard low-voltage feeders and typical industrial distribution where loads are well-defined: MCCB is often sufficient.
For large plants, critical loads, switchgear-mounted applications, or situations needing high short-circuit capacity and maintenance flexibility: ICCB is the smarter choice.
Always check standards: MCCBs and ICCBs both can fall under UL 489 (molded‐case) but ICCBs may also align more with power breaker standards depending on configuration.
🔧 At SSPD, with our factory production capability and custom certification support, choosing the right type of breaker is part of delivering high-quality, fit-for-purpose protection to our global clients.
