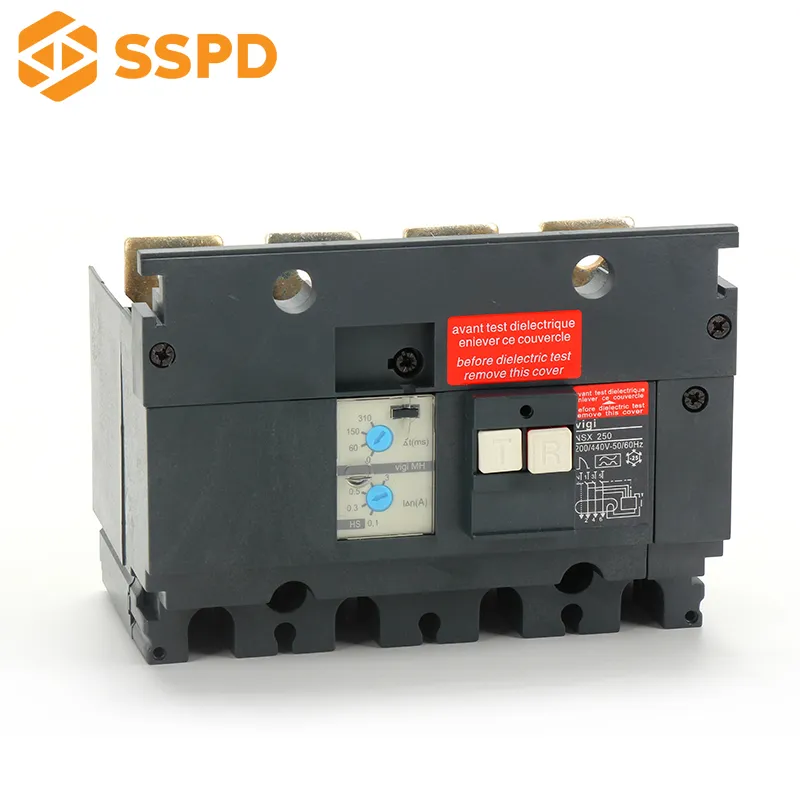

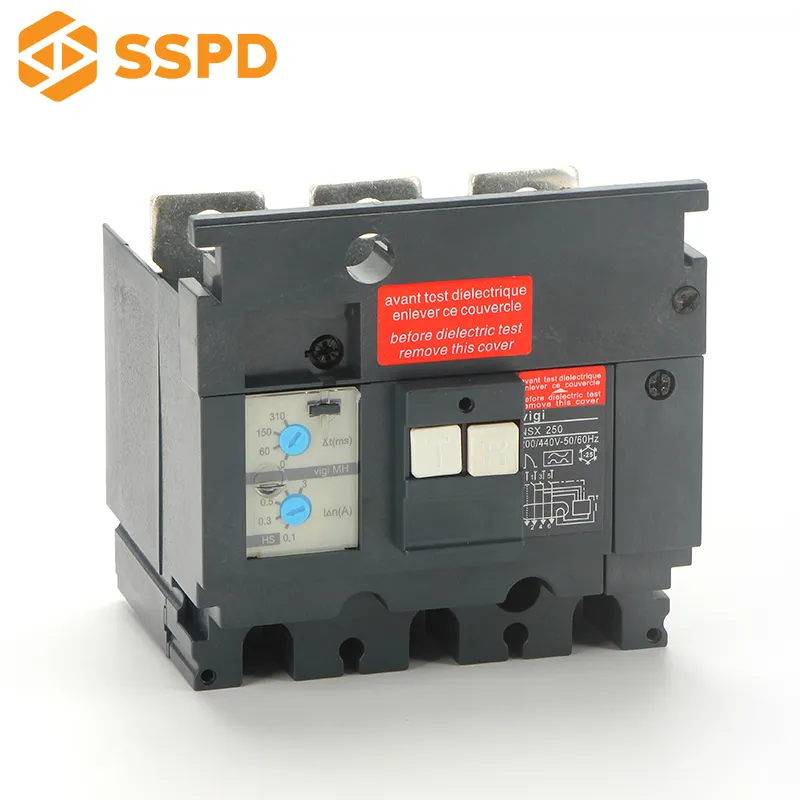

CNSX Vigi add-on
Addition of the Vigi add-on does not modify circuit-breaker characteristics:
| Rated Voltage | Model | Dimension（mm) | Weight（kg） |
| 220-440V 440-550V | CNSX、CNSV、CNS 100-250A 3P | 105*236*86 | 2.5 |
| CNSX、CNSV、CNS、CEZC 400-630A 3P | 135*355*110 | 8.8 | |
| CNSX、CNSV、CNS 100-250A 4P | 140*236*86 | 3.2 | |
| CNSX、CNSV、CNS、CEZC 400-630A 4P | 180*355*110 | 10.8 |
Vigi add-on may be equipped with an auxiliary contact (SDV) to remotely signal tripping due to an earth fault.
Use of 4-pole Vigi add-on with a 3-pole CNSX “In a 3-phase installation with an uninterrupted neutral, an accessory makes it possible to use a 4-pole Vigi add-on with connection of the neutral cable.”
“Vigi add-on are self-powered internally by the distribution-system voltage and therefore do not require any external source. They continue to function even when supplied by only two phases.”
| Vigi add-on selection | |||
| Type | Vigi ME | Vigi MH | Vigi MB |
| Number of poles | 3,4 | 3,4 | 3,4 |
| NSX 100 | √ | √ | × |
| NSX 160 | √ | √ | × |
| NSX 250 | × | √ | × |
| NSX 400 | × | × | √ |
| NSX 630 | × | × | √ |

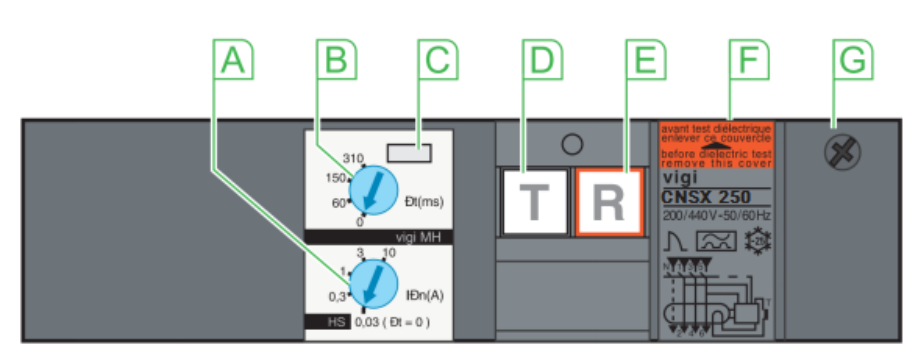

A Sensitivity setting
B Time-delay setting (for selective earth-leakage protection).
C Lead-seal fixture for controlled access to settings.
D Test button simulating an earth-fault for regular checks on the tripping function
E Reset button (reset required after earth-fault tripping).
F Rating plate
G Housing for SDV auxiliary contact.
| Protection characteristics | |||
| Sensitivity | fixed | adjustable | adjustable |
| In (A) | 0.3 | 0.03-0.3-1-3-10 | 0.3-1-3-10-30 |
| Time delay | fixed | adjustable | adjustable |
| Intentional delay (ms) | ＜40 | 0-60-150-310 | 0-60-150-310 |
| Max. break time (ms) | ＜40 | ＜40＜140＜300＜800 | ＜40＜140＜300＜800 |
| Rated voltage V AC 50/60 Hz | 200…440 | 200…440-440…550 | 200…440-440…550 |
