Economical Motor Mechanism For CNSX CNSV CNSD

Economical Motor Mechanism For CNSX CNSV CNSD
Economical Motor Mechanism For CNSX CNSV CNSD
Economical Motor Mechanism For CNSX CNSV CNSD
Item Dimension Rated Voltage
(V)
Action Current
(A)
Mechanical endurance
(o-cycle)
Motor Power
(W)
a b A H
DC3-250/CNSX 35 126 90 102 110-240V AC
100-220V DC
24V DC
≤0.5 10000 14
DC3-630/CNSX 130 220 130 145 230V AC/220V DC
110V AC/110V DC
24V DC
≤2 5000 35

Mounting Notes:

  1. check the motor mechanism is matched the MCCB or not.
  2. after motor mechanism mounted,firstly handle testto check the ON/OFF and reset(ON) action in function.
  3. when handle operation,first switch the motor mechanism to be handle step,inset the handle and turn handle in clocking 180°,after handle operation,switch the motor mechanism back to auto step.
  4. before power inducting,check the voltage is correct and wiring is correct.
  5. when power inducting,first should check MCCB.If under voltage Auxiliary switch is mounted,the under voltage releaser power should be inducted .And check the voltage is ≥85% rating voltage.
  6. when power inducted,the motor mechanism operation cycle frequency should not more than 180/hour (DC3 63-250),should not more than 60/hour (DC3- 400-800)

DC3 Economical Motor Mechanism

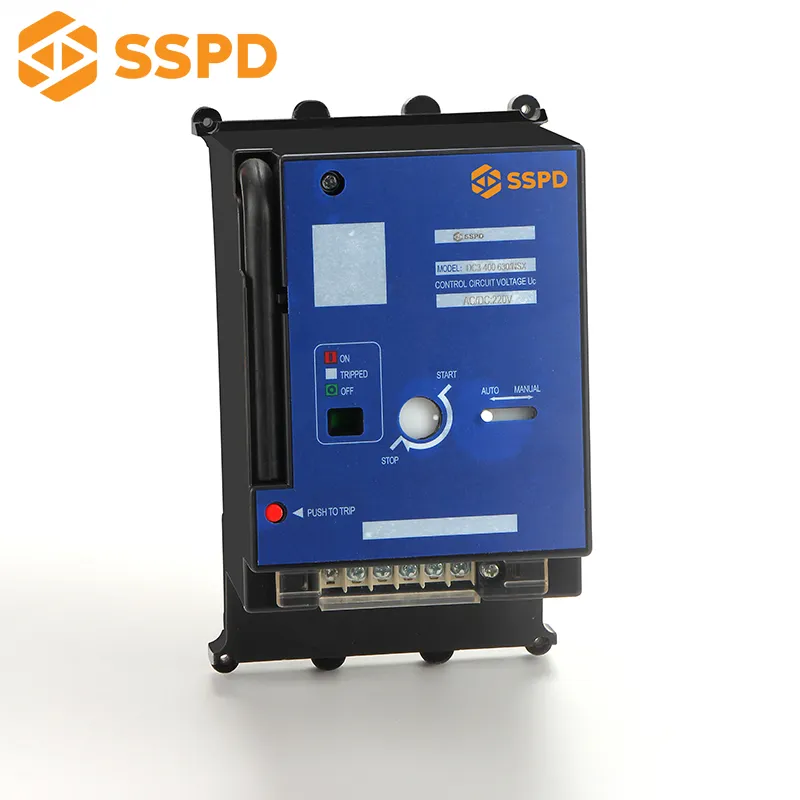

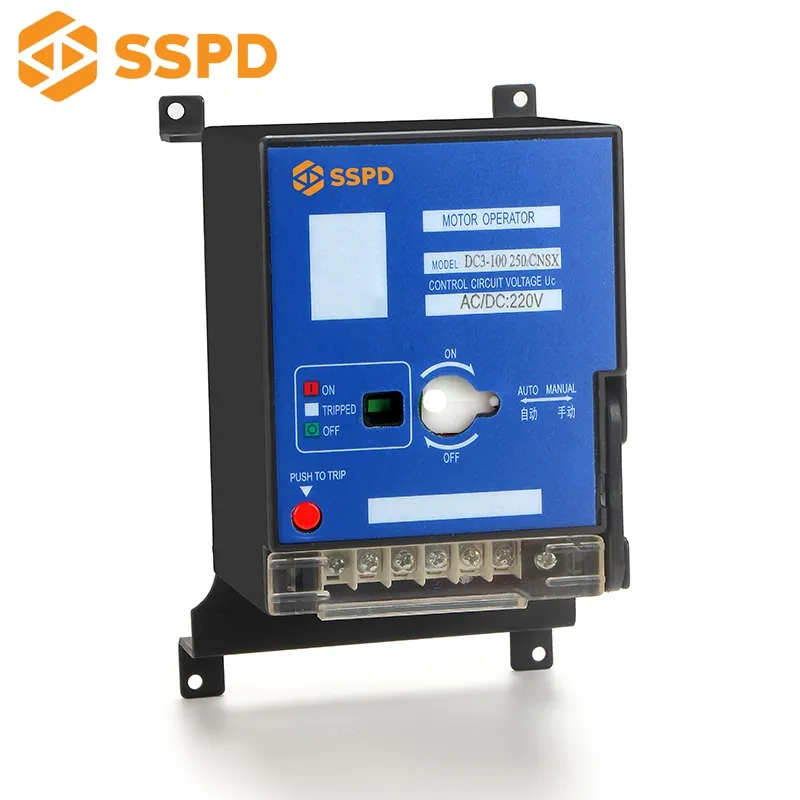

DC3 Series Motor Mrchanism ,which is utilize mini permanent magnetism DC motor to drive 16A-630A MCCB to auto ON/OFF Mechanism.
