Plug-in circuit breakers

The plug-in version makes it possible to:

  • extract and/or rapidly replace the circuit breaker without having to touch the connections on the base
  • allow for the addition of future circuits by installing bases that will be equipped with a circuit breaker at a later date
  • isolate the power circuits when the device is mounted on or through a panel. It acts as a barrier for the connections of the plug-in base. Insulation is made complete by the mandatory short terminal shields on the device.

The degrees of protection are:

  • circuit breaker plugged in = IP4
  • circuit breaker removed = IP2
  • circuit breaker removed, base equipped with shutters = IP4.

Parts of a plug-in configuration

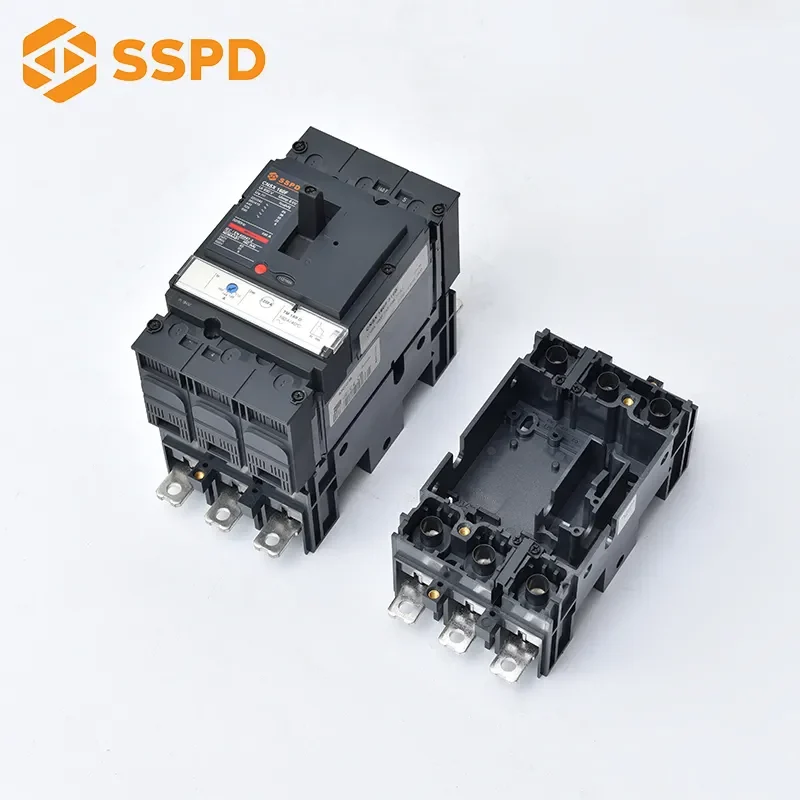

A plug-in configuration is made by adding a "plug-in kit" to a fixed device.
To avoid connecting or disconnecting the power circuits under load conditions, a safety trip causes automatic tripping if the device is ON, before engaging or withdrawing it.
The safety trip, supplied with the kit, must be installed on the device.
If the device is disconnected, the safety trip does not operate. The device can be operated outside the switchboard.

Accessories

Optional insulation accessories are available.

  • Terminal shields to protect against direct contact.
  • Interphase barriers to reinforce insulation between phases and protect against direct contact.

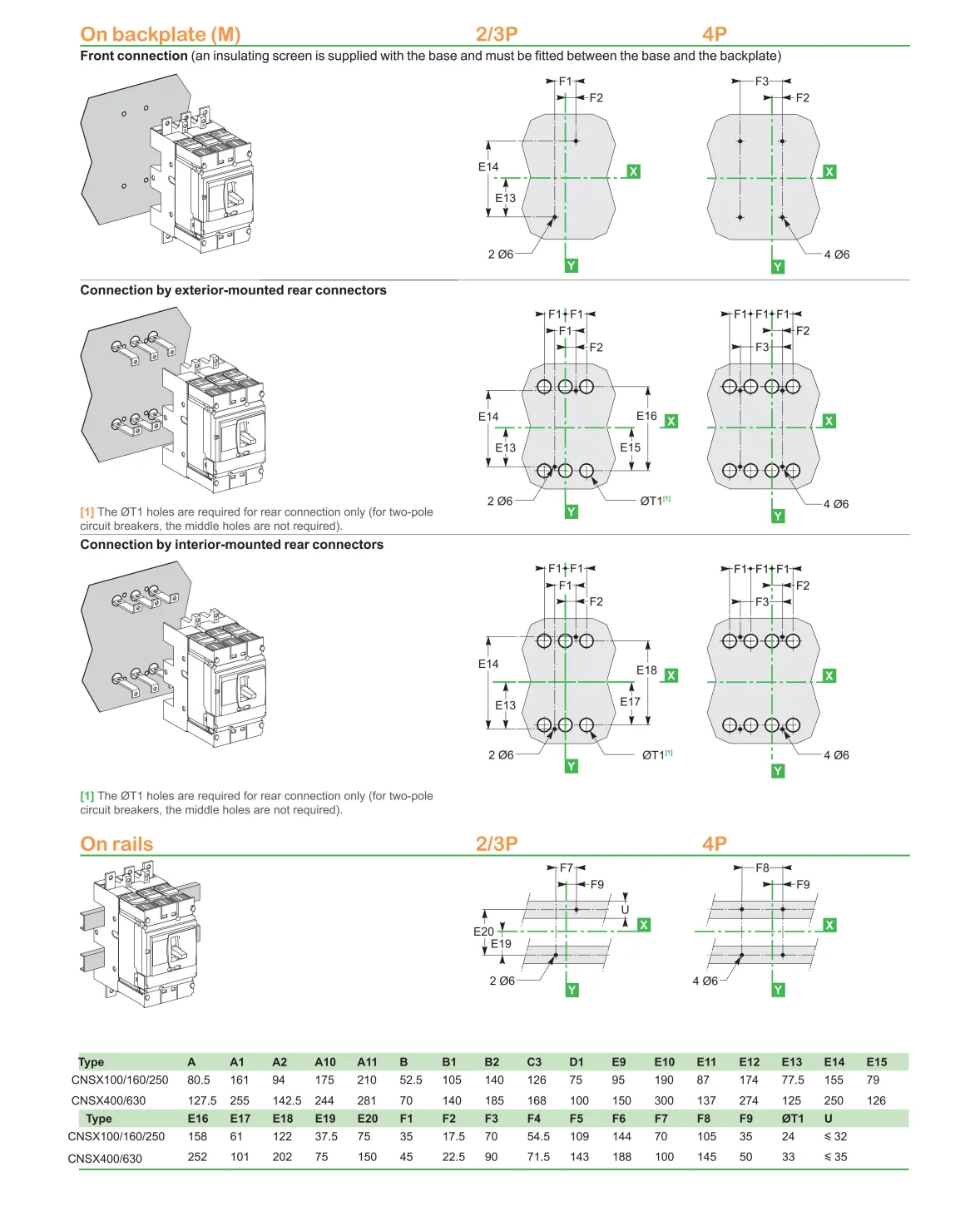

 Mounting:Mounting on a backplate.Mounting through a front panel.Mounting onrails.

Type A A1 A2 A3 A4 A5 A6 A7 A8 A9 B B1 B2 C1 C2 C3 E1
CNSX100/160/250 80.5 161 94 145 178.5 155.5 236 169 220 253.5 52.5 105 140 81 86 126 62.5
CNSX400/630 127.5 255 142.5 200 237 227.5 355 242.5 300 337 70 140 185 105 110 168 100
Type E2 E3 E4 E5 E6 E7 E8 F1 F2 F3 G1 G2 G3 G4 G5 ΦT U
CNSX100/160/250 125 70 140 137.5 200 145 215 35 17.5 70 95 75 13.5 23 17.5 24 ≤32
CNSX400/630 200 113.5 227 200 300 213.5 327 45 22.5 90 - - - - - 32 ≤35

Type A A1 A2 A10 A11 B B1 B2 C3 D1 E9 E10 E11 E12 E13 E14 E15
CNSX100/160/250 80.5 161 94 175 210 52.5 105 140 126 75 95 190 87 174 77.5 155 79
CNSX400/630 127.5 255 142.5 244 281 70 140 185 168 100 150 300 137 274 125 250 126
Type E16 E17 E18 E19 E20 F1 F2 F3 F4 F5 F6 F7 F8 F9 ΦT U
CNSX100/160/250 158 61 122 37.5 75 35 17.5 70 54.5 109 144 70 105 35 24 ≤32
CNSX400/630 252 101 202 75 150 45 22.5 90 71.5 143 188 100 145 50 33 ≤35
